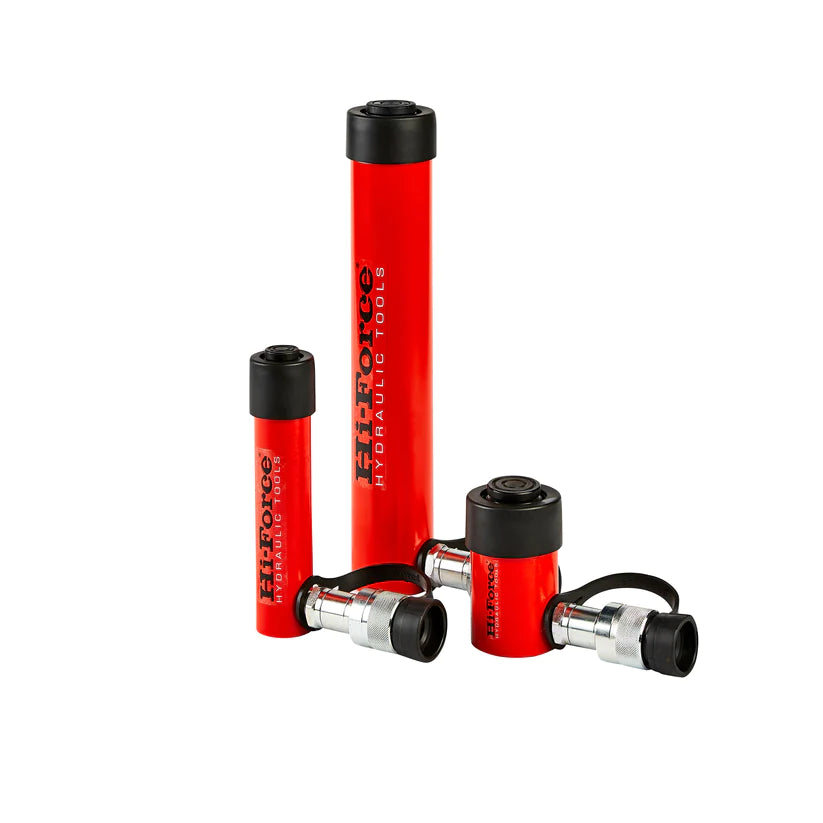

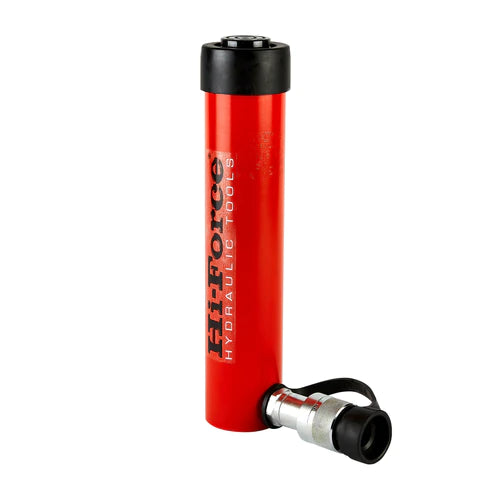

HSS - Single Acting Multi-Purpose Cylinders

• Capacities from 5 to 120 tons.
• Stroke lengths from 0.99 to 18.01 inches

• Working pressure 10,000 psi.


Single acting, spring assisted return. Nitrocarburized piston rod for corrosion resistance. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures. Collar threads withstand full load. Grooved saddles fitted as standard on all models. Optional piston rod saddles. Customized and special design cylinders are available on request.
