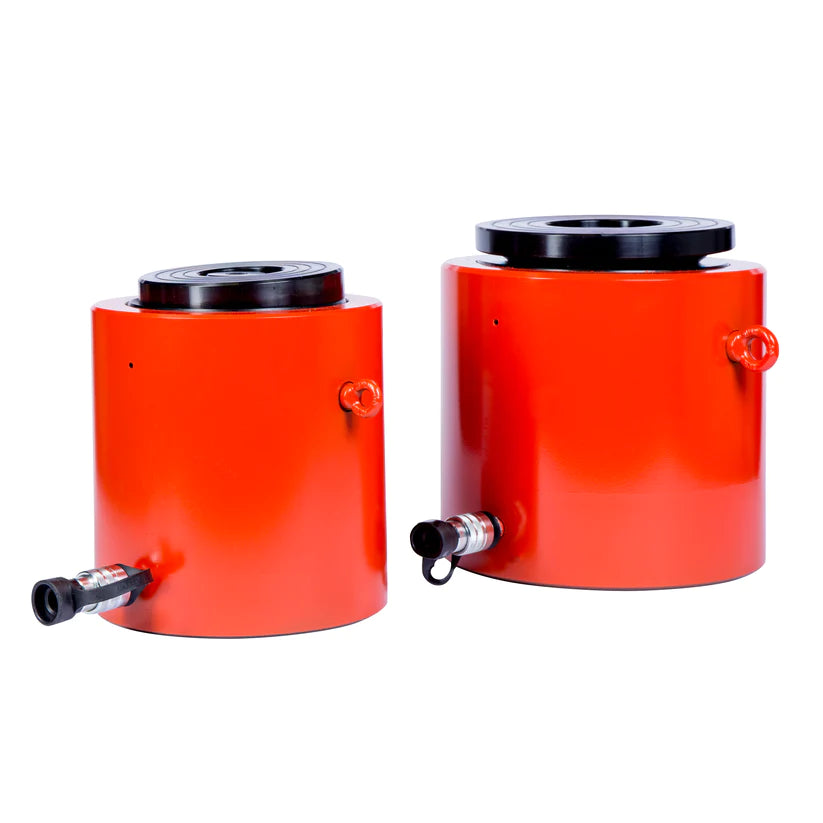

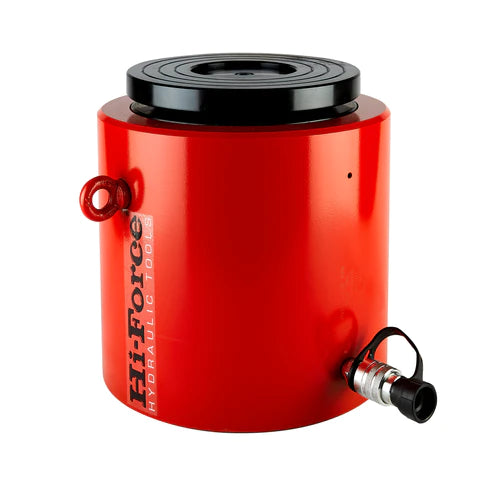

HSG - Single Acting Load Return High Tonnage Construction Cylinders

• Capacities from 168 to 359 tons.
• Stroke length 5.99 inches.
• Working pressure 10,000 psi.

Single acting, load return. Heavy duty design for construction, civil  engineering and heavy fabrication applications. Overstroke restrictor port to prevent over extension of piston. Tilting saddle fitted as standard to reduce the risk of side loading. Nitrocarburized cylinder body and piston rod for corrosion resistance. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures.
