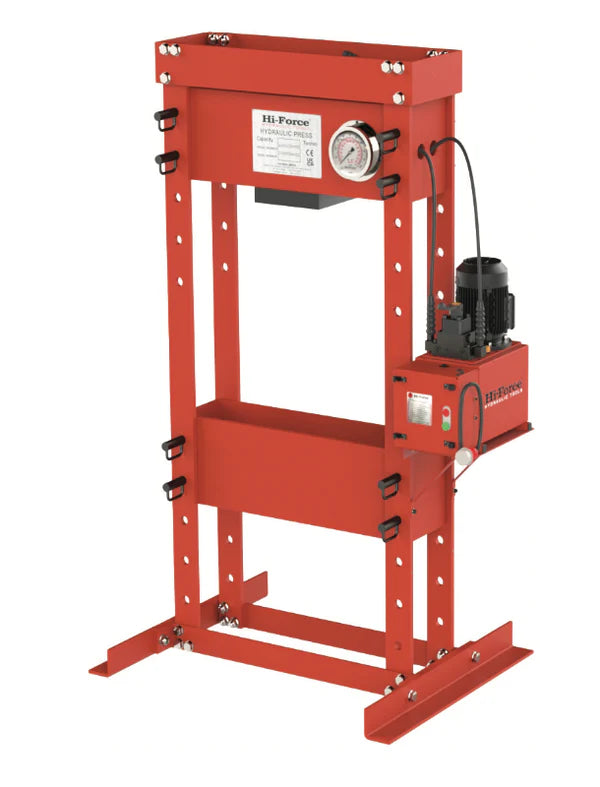

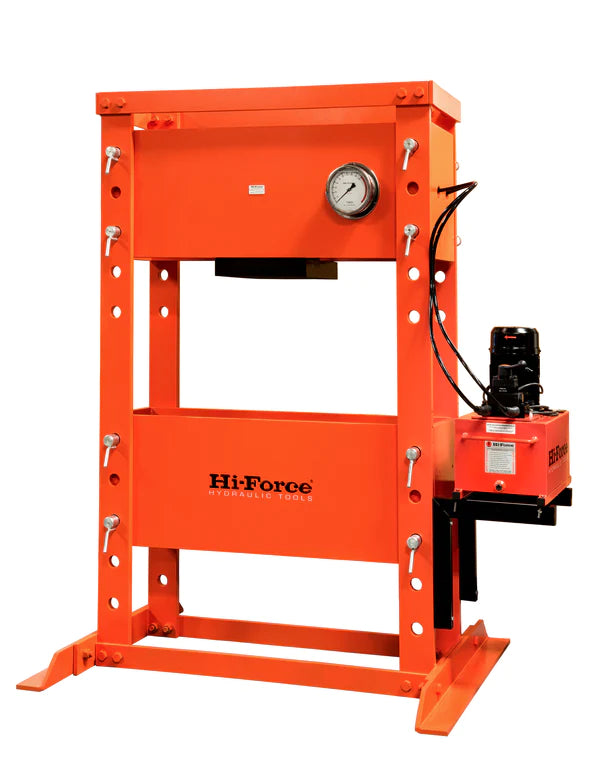

HPF Workshop Presses

• Capacities from 11 to 220 tons
• Stroke lengths from 9.85 to 13 inches
• Working pressure 10,000 psi

Strong steel frame construction. Easily adjustable work table on all models. Adjustable upper bed on all models 55 tons and above.

All 400/460V models are suitable for operation at 50 Hz and 60 Hz.

All 110V and 230V models are supplied to run at 50 Hz as standard.

For 60 Hz requirements, please add "H" to the press model number.

For a press with low voltage solenoid valve and hand pendant controller, add "S" to the press model number.

To order a press suitable for 60 Hz operation with low voltage solenoid valve and hand pendant controller, add "HS" to the press model number.

Notes:

1) 28-ton models have a fixed top head and adjustable bottom press bed with 6 positions.

2) 55-ton models have an adjustable top head and bottom press bed with 4 positions each.

3) 110-ton models have adjustable top head and bottom press bed with 3 positions each.

4) 220-ton models have adjustable top head with 3 positions and a bottom press bed with 9 positions.
