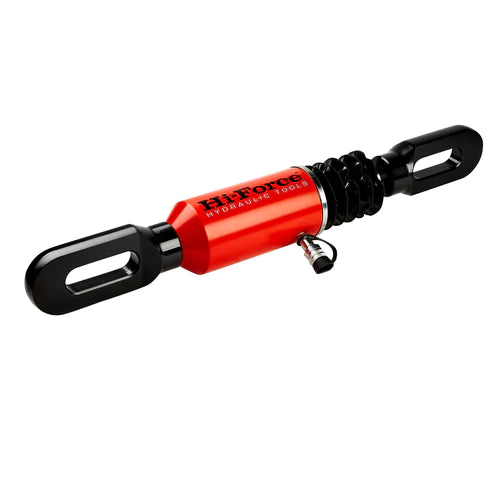

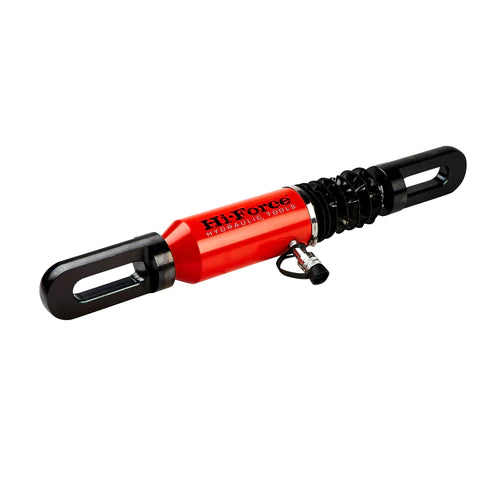

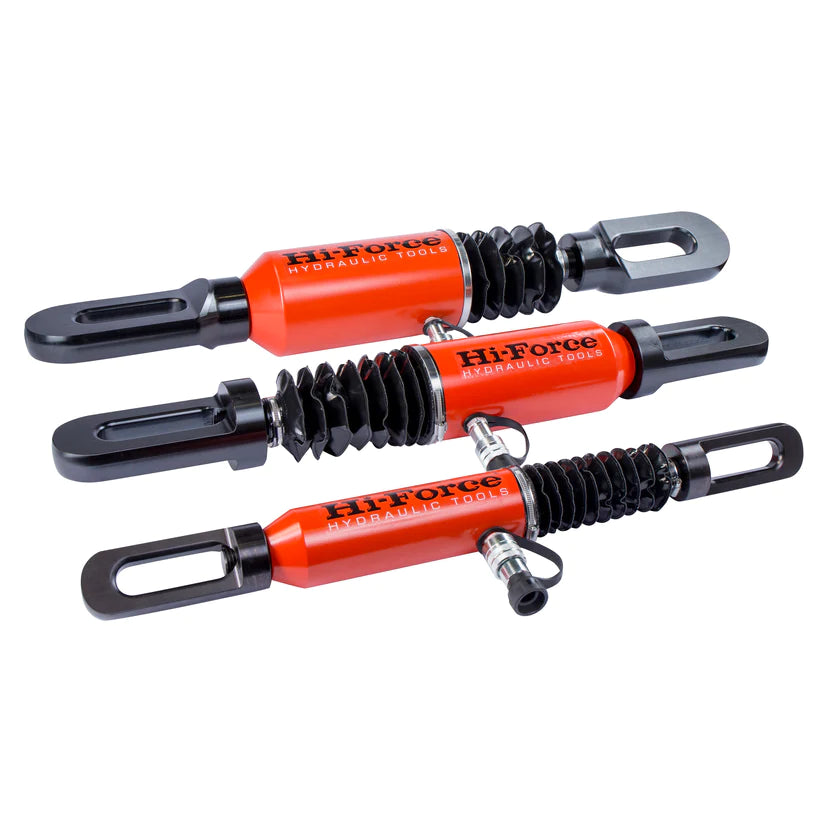

HPC - Single Acting Pull Cylinders

• Capacities from 11 to 55 tons.
• Stroke length 5.99 inches.
• Working pressure 10,000 psi.

Single acting, spring assisted return. Substantial hydraulic pulling force for steel plate alignment, cable tensioning and general load moving applications. Replaceable pulling and clevis eyes fitted on the piston rod and cylinder base. Nitrocarburized piston rod for corrosion resistance. Anti-extrusion seals for improved performance at high pressures. Protective piston rod bellows fitted as standard.
