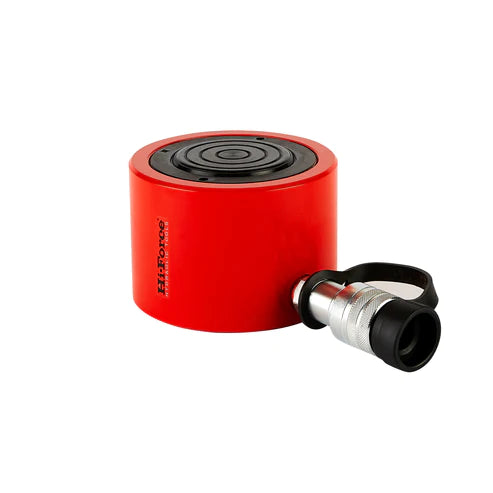

HLS - Single Acting Low Height Cylinders

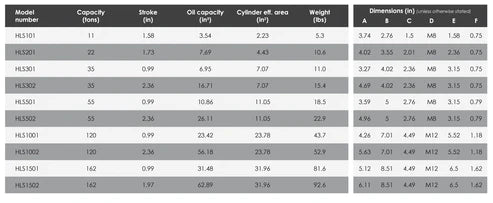

• Capacities from 11 to 162 tons.
• Stroke lengths from 0.99 to 2.36 inches.
• Working pressure 10,000 psi.

Single acting, spring assisted return. Compact design with optimum stroke lengths. Nitrocarburized piston rod for corrosion resistance. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures. Customized and special design cylinders are available on request.
