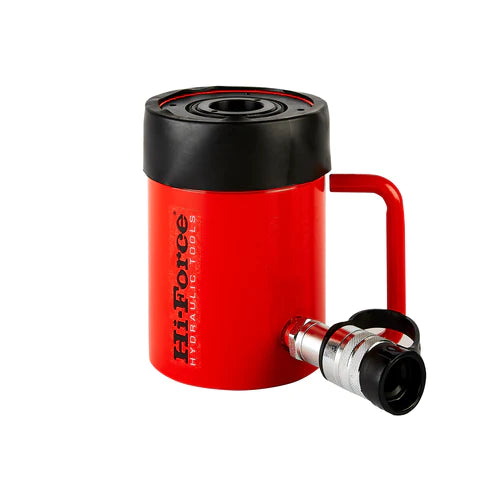

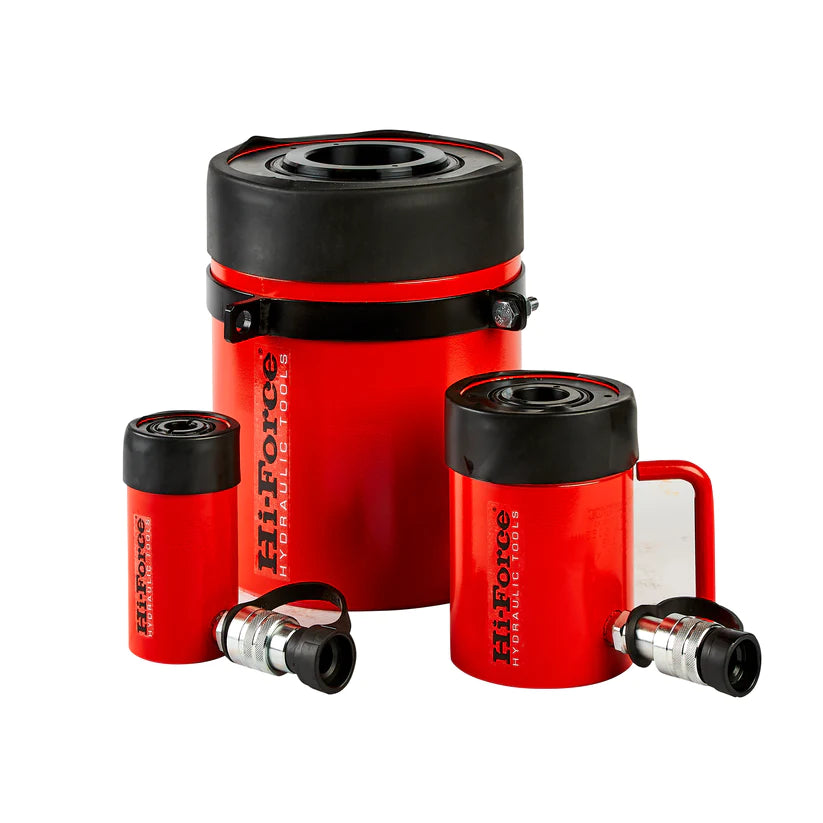

HHS - Single Acting Hollow Piston Cylinders

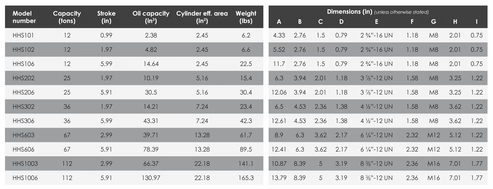

• Capacities from 12 to 112 tons.
• Stroke lengths from 0.99 to 5.99 inches.
• Working pressure 10,000 psi.

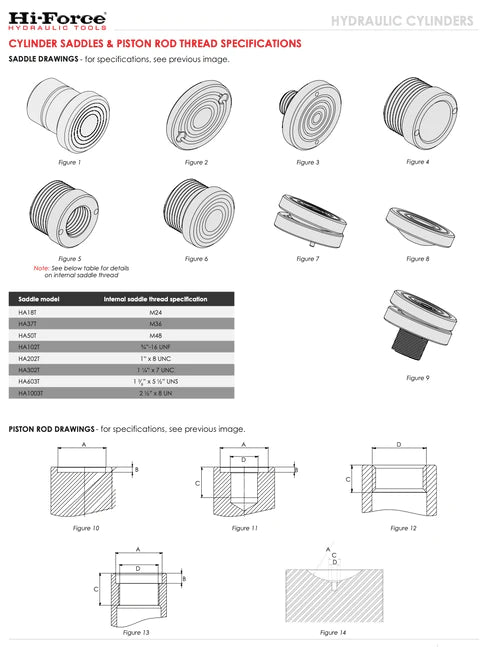

Single acting, spring assisted return. Hollow piston design for tooling, maintenance and tensioning applications. Nitrocarburized piston rod for corrosion resistance. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures. Collar threads withstand full load. Optional piston rod saddles. Customized and special design cylinders are available on request.
