CH Cable Crimping Heads

• 7 models available

• 180-degree rotating head

• Working pressure 10,000 psi


Open C jaw or parallel guide design. 180˚ rotating head for easy access in confined spaces. Supplied with standard die sets and carrying case. Quick connect coupling for easy connection to 10,000 psi rated hydraulic pump.

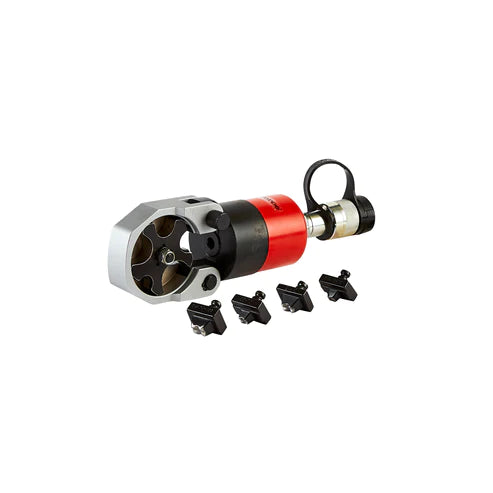

• Model CH21 is suitable for crimping non-insulated terminals up to 240 mm²
• Models CH30, CH32 & CH40 are suitable for crimping connectors up to 400 mm²

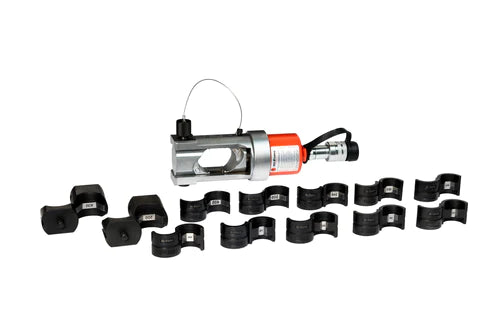

• Models CH63 & CH80 are suitable for crimping connectors up to 630 mm²
• Model CH1000N is suitable for crimping distribution and transmission lines up to 1000 mm²
